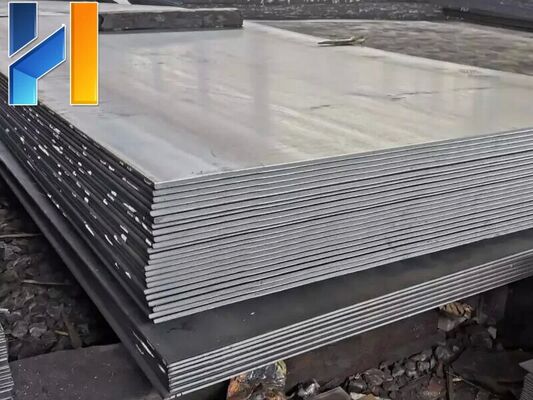

High-Quality Carbon Steel Plate and Sheet with Cold Rolled And Hot Rolled Technique, 0.15mm-300mm Thickness, Compliant with JIS, AiSi, ASTM, GB, DIN, EN Standards
Productdetails
| Dikte | 0.15mm300mm | Breedte | 1250 mm 1500 mm of volgens de eis van de klant |
|---|---|---|---|
| Lengte | 1000mm12000mm of volgens het speciale verzoek van de klant | Techniek | Koudgewalst en warmgewalst |
| Koolstofgehalte | koolstofarme staal | C (gew.%) | 0,15 |
| Si (gew.%) | 0,75 | Mn (gew.%) | 2.00 |
| P (gew.%) | 0,06-0,12 | S (gew.%) | 0,008 |
| Cu (gew.%) | 0,25-0,50 | Cr (gew.%) | --- |
| Ni (gew.%) | --- | Microstructuur | Perliet |
| Eigenschappen | Hoge hardheid, sterkte, lage ductiliteit | ||
| Markeren | Cold Rolled And Hot Rolled Carbon Steel Plate,0.15mm-300mm Thickness Carbon Steel Sheet,JIS Standard Steel Plate |
||
Productomschrijving
Carbon Structural Steel Plates & Sheets
08F / 1008 / SPHD,SPHE / DC01(1.0330) Carbon Steel Plate/Sheet
Product Overview
Our high-quality carbon structural steel plates are engineered with precision, featuring less than 0.8% carbon content. They are meticulously processed to minimize sulfur, phosphorus, and non-metallic inclusions, ensuring superior mechanical properties for demanding applications.
Key Features
- Enhanced Durability and Strength
- Excellent Machinability and Weldability
- Consistent Mechanical Performance
- High Ductility and Toughness
Ideal for: Construction, manufacturing, infrastructure projects, automotive components, and heavy machinery.
Product Specifications
Brand
N/A
Origin
N/A
Material
Carbon Structural Steel
Color
Metallic
Packaging & Delivery
Shipment with Mill Test Certificate. Third Party Inspection is acceptable if needed.
Technical Specifications
| Product Name | Standard | Material Grades | Dimensions |
|---|---|---|---|
| Carbon steel sheet / steel plate | JIS, AISI, ASTM, GB, DIN, EN | ASTM: Grade B, Grade C, Grade D, A36, Grade 36, Grade 40, Grade 42, Grade 50, Grade 55, Grade 60, Grade 65, Grade 80 EN: S185, S235JR, S275JR, S355JR, S420NL, S460NL S500Q, S550Q, S620Q, S690Q JIS: SS330, SPHC, SS400, SPFC, SPHD, SPHE |
Thickness: 0.15mm-300mm Width: 1250mm 1500mm or as per client's requirement Length: 1000mm-12000mm or according to customer's special request |
| Technique | Cold Rolled And Hot Rolled | ||
Chemical Composition Analysis
| Grade | C (wt.%) | Si (wt.%) | Mn (wt.%) | P (wt.%) | S (wt.%) | Cu (wt.%) | Cr (wt.%) | Ni (wt.%) |
|---|---|---|---|---|---|---|---|---|
| Cor-ten A | 0.12 | 0.25-0.75 | 0.20-0.50 | 0.01-0.2 | 0.03 | 0.25-0.55 | 0.5-1.25 | 0.65 |
| Cor-ten B | 0.16 | 0.3-0.5 | 0.8-1.25 | 0.03 | 0.03 | 0.25-0.40 | 0.4-0.65 | ≤0.4 |
| SPA-H | 0.12 | 0.2-0.75 | 0.60 | 0.07-0.15 | 0.035 | 0.25-0.55 | 0.3-1.25 | 0.65 |
| 9CuPCrNi-A | 0.12 | 0.2-0.75 | 0.20-0.50 | 0.07-0.15 | 0.040 | 0.25-0.55 | 0.3-1.25 | 0.65 |
Carbon Steel Classification
| Carbon content (wt.%) | Microstructure | Properties | Examples |
|---|---|---|---|
| Low-carbon steel < 0.25 |
Ferrite, pearlite | Low hardness and cost. High ductility, toughness, machinability and weldability | AISI 304, ASTM A815, AISI 316L |
| Medium-carbon steel 0.25 – 0.60 |
Martensite | Low hardenability, medium strength, ductility and toughness | AISI 409, ASTM A29, SCM435 |
| High-carbon steel 0.60 – 1.25 |
Pearlite | High hardness, strength, low ductility | AISI 440C, EN 10088-3 |
