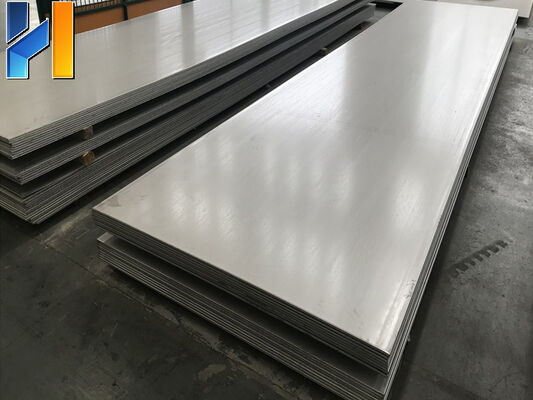

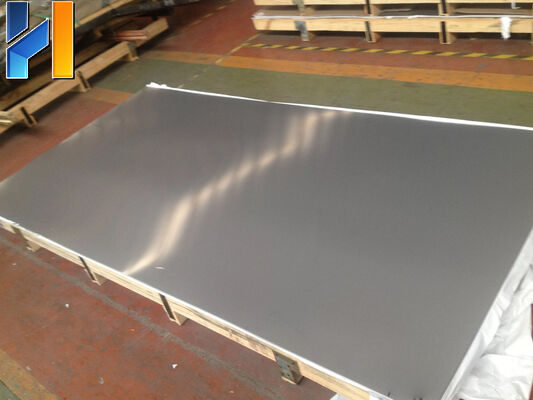

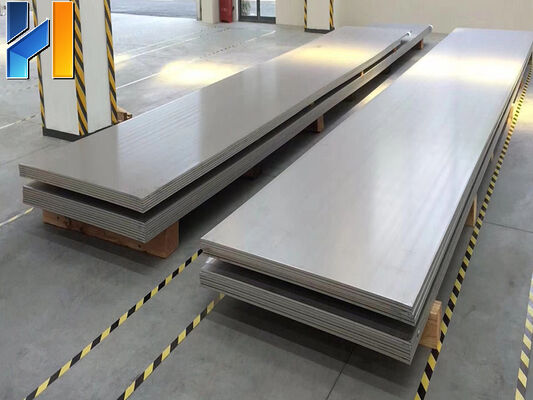

409L Grade Stainless Steel Sheet with Strong Corrosion Resistance and Customizable Dimensions
Productdetails
| Breedte | 100mm ~ 2000mm | Dikte | 0,2 mm ~ 100 mm |
|---|---|---|---|
| Diktetolerantie | +/-0,01 mm | Oppervlakteafwerking | 2B, BA, 8K spiegel, tekening HL, N titaniumplating, etsen, reliëf |
| Randtype | Molenrand, spleetrand | Productietechniek | Koud opgerold / warm opgerold |
| Koolstofgehalte | ≤0.03% | Mangaaninhoud | ≤2,0% |
| Fosforgehalte | ≤0.03% | Zwavelinhoud | ≤0,02% |
| Siliciumgehalte | ≤0,80% | chromiuminhoud | 21,0-23,0% |
| Nikkelinhoud | 23,0-25,0% | Molybdeengehalte | 20,5-3,5% |
| UNS-nummer | N08904 | ||
| Markeren | 409L Grade Stainless Steel Sheet,Strong Corrosion Resistance SS Sheet,Customizable Dimensions Metal Sheet |
||
Productomschrijving
409L Stainless Steel Sheet
Premium Stainless Steel Sheets
Engineered for durability and performance, our stainless steel sheets offer exceptional corrosion resistance and versatility. Available in a wide range of grades and customizable dimensions, they are the ideal choice for demanding industrial applications.
- Superior Corrosion Resistance
- High Strength and Durability
- Customizable Length, Width, and Thickness
- Diverse Surface Finishes Available
- Wide Range of Grades (200, 300, 400 Series)
Key Applications: Construction, Shipbuilding, Railway Stations, Decorative Finishes, Medical Equipment, Food Industry, Tableware, Kitchen Utensils, Chemical Industry.
Product Specifications
Basic Attributes
Brand: N/A
Origin: N/A
Material: Stainless Steel
Color: Metallic Silver
Packaging: Standard Seaworthy Package - Wooden Pallet
Dimensional Specifications
| Name | Standard | Width | Thickness |
|---|---|---|---|
| Stainless Steel Sheet | ASTM/ASME 240/480, JIS 4305, DIN EN 10088-2 | 100mm ~ 2000mm | 0.2mm ~ 100mm |
Grade Standards Comparison
| UNS | ASTM | EN | JIS |
|---|---|---|---|
| S30100 | 301 | 1.4319 | SUS301 |
| S30400 | 304 | 1.4301 | SUS304 |
| S30403 | 304L | 1.4306 | SUS304L |
| S30908 | 309S | 1.4833 | SUS309S |
| S31008 | 310S | 1.4845 | SUS310S |
| S31600 | 316 | 1.4401 | SUS316 |
| S31603 | 316L | 1.4404 | SUS316L |
| S31703 | 317L | 1.4438 | SUS317L |
| S32100 | 321 | 1.4541 | SUS321 |
| S34700 | 347 | 1.4550 | SUS347 |
| S32750 | SAD2507 | 1.4410 | N/A |
| S31803 | SAF2205 | 1.4462 | N/A |
| N08904 | 904L | 1.4539 | N/A |
Chemical Composition - Part 1
| Grade | C% | Mn% | P% |
|---|---|---|---|
| 301 | ≤0.15 | ≤2.00 | ≤0.045 |
| 304 | ≤0.08 | ≤2.00 | ≤0.045 |
| 304L | ≤0.03 | ≤2.00 | ≤0.045 |
| 309S | ≤0.08 | ≤2.00 | ≤0.045 |
| 310S | ≤0.08 | ≤2.00 | ≤0.045 |
| 316 | ≤0.08 | ≤2.00 | ≤0.045 |
| 316L | ≤0.03 | ≤2.00 | ≤0.045 |
| 317L | ≤0.03 | ≤2.00 | ≤0.045 |
| 321 | ≤0.08 | ≤2.00 | ≤0.045 |
| 347 | ≤0.08 | ≤2.00 | ≤0.045 |
| SAD2507 | ≤0.03 | ≤1.2 | ≤0.035 |
| SAF2205 | ≤0.03 | ≤2.0 | ≤0.03 |
| 904L | ≤0.03 | ≤2.0 | ≤0.035 |
Chemical Composition - Part 2
| Grade | S% | Si% | Cr% |
|---|---|---|---|
| 301 | ≤0.03 | ≤1.00 | 16.0-18.0 |
| 304 | ≤0.03 | ≤0.75 | 18.0-20.0 |
| 304L | ≤0.03 | ≤0.75 | 18.0-20.0 |
| 309S | ≤0.03 | ≤0.75 | 22.0-24.0 |
| 310S | ≤0.03 | ≤1.50 | 24.0-26.0 |
| 316 | ≤0.03 | ≤0.75 | 16.0-18.0 |
| 316L | ≤0.03 | ≤0.75 | 16.0-18.0 |
| 317L | ≤0.03 | ≤0.75 | 18.0-20.0 |
| 321 | ≤0.03 | ≤0.75 | 17.0-19.0 |
| 347 | ≤0.03 | ≤0.75 | 17.0-19.0 |
| SAD2507 | ≤0.02 | ≤0.80 | 24.0-26.0 |
| SAF2205 | ≤0.02 | ≤1.00 | 21.0-23.0 |
| 904L | ≤0.03 | ≤1.00 | 18.0-20.0 |
Additional Properties & Applications
| Grade | Ni% | Mo% | Surface |
|---|---|---|---|
| 301 | 6.0-8.0 | - | 2B, BA, 8K Mirror, Drawing HL, N Titanium plating, Etching, Embossing |
| 304 | 8.0-10.5 | - | 2B, BA, 8K Mirror, Drawing HL, N Titanium plating, Etching, Embossing |
| 304L | 8.0-12.0 | - | 2B, BA, 8K Mirror, Drawing HL, N Titanium plating, Etching, Embossing |
| 309S | 12.0-15.0 | - | 2B, BA, 8K Mirror, Drawing HL, N Titanium plating, Etching, Embossing |
| 310S | 19.0-22.0 | - | 2B, BA, 8K Mirror, Drawing HL, N Titanium plating, Etching, Embossing |
| 316 | 10.0-14.0 | 2.0-3.0 | 2B, BA, 8K Mirror, Drawing HL, N Titanium plating, Etching, Embossing |
| 316L | 10.0-14.0 | 2.0-3.0 | 2B, BA, 8K Mirror, Drawing HL, N Titanium plating, Etching, Embossing |
| 317L | 11.0-15.0 | 3.0-4.0 | 2B, BA, 8K Mirror, Drawing HL, N Titanium plating, Etching, Embossing |
| 321 | 9.0-12.0 | - | 2B, BA, 8K Mirror, Drawing HL, N Titanium plating, Etching, Embossing |
| 347 | 9.0-13.0 | - | 2B, BA, 8K Mirror, Drawing HL, N Titanium plating, Etching, Embossing |
| SAD2507 | 6.0-8.0 | 3.0-5.0 | 2B, BA, 8K Mirror, Drawing HL, N Titanium plating, Etching, Embossing |
| SAF2205 | 4.0-6.5 | 2.5-3.5 | 2B, BA, 8K Mirror, Drawing HL, N Titanium plating, Etching, Embossing |
| 904L | 23.0-25.0 | 3.0-4.0 | 2B, BA, 8K Mirror, Drawing HL, N Titanium plating, Etching, Embossing |
Manufacturing & Application Details
| Grade | Edge | Technique | Application |
|---|---|---|---|
| All | Mill Edge, Slit Edge | Cold Rolled / Hot Rolled | Medical equipment, Food industry, Table-wares, Construction, Kitchen utensils, Chemical industry |
Quality Specifications
| Thickness/Width Tolerance | Length | Advantage |
|---|---|---|
| +/-0.01mm | Customer's Requirement | Strong Corrosion Resistance |
